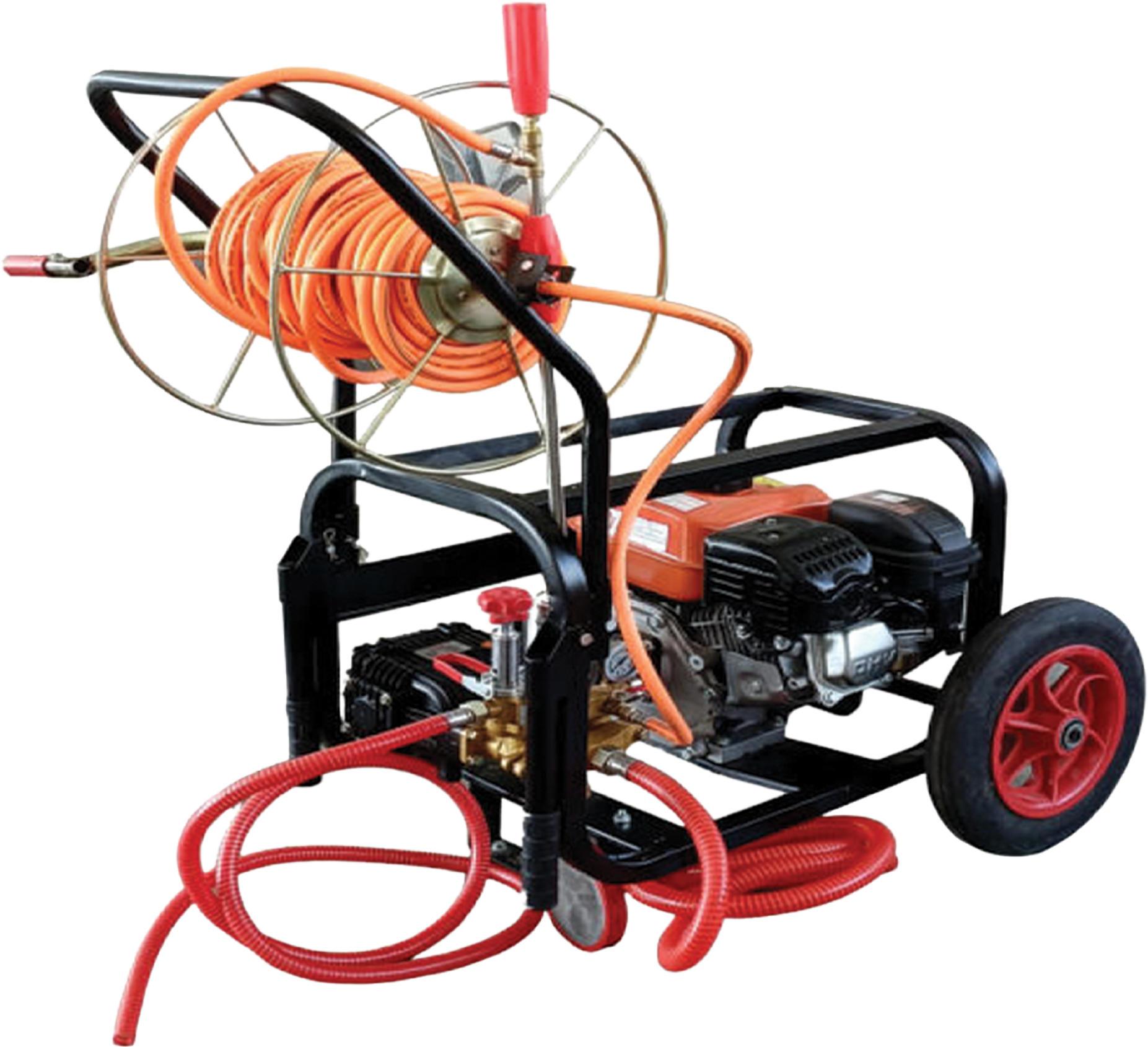

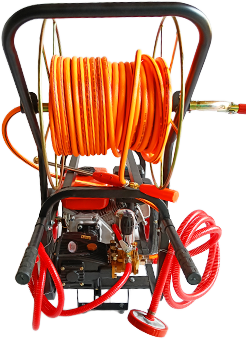

ENGINE OPERATED HTP SPRAYER , 7 HP Engine 198cc

Brand:

TRISPAN

Model:

THPS-350

Description

Introducing the TRISPAN THPS-350 HTP Power Sprayer — a heavy-duty, high-capacity sprayer built for professional agricultural operations, offering unmatched power and efficiency.


➔ 7HP 198cc powerful engine with double-acting plunger pump
➔ High output of 30–40 liters per minute
➔ Sturdy wheelbase frame for easy mobility
➔ Two 60 cm brass guns with straight handgrips
➔ Adjustable solid cone nozzles for versatile spraying
➔ Women-friendly design with ergonomic handling

  • Description
  • Specification

The TRISPAN THPS-350 HTP Power Sprayer is engineered for intensive spraying tasks across large agricultural fields and plantations. Powered by a robust 7HP 198cc engine and a high-efficiency 22cc double-acting plunger pump, this machine guarantees reliable and consistent performance even under tough conditions.
It delivers a powerful output of 30 to 40 liters per minute, ensuring faster spraying and better coverage. The sprayer operates at a rated pressure of 8 kg/cm² and maintains a working pressure range between 6 to 12 bar, making it ideal for a variety of heavy-duty spraying applications.
Mounted on a durable wheelbase frame, the THPS-350 is easy to move around fields and uneven terrains. Equipped with two 60 cm brass guns featuring straight handgrips and adjustable solid cone nozzles, it provides maximum spraying flexibility and control.
A 50-foot hose pipe allows extended reach without moving the main unit frequently. Despite its power, the design remains women-friendly, ensuring easier handling and reduced fatigue even during long operations.
Built for strength, efficiency, and user comfort, the TRISPAN THPS-350 is the ultimate spraying solution for professional farmers and agri-entrepreneurs.

Feature

 Details

BrandTRISPAN
ModelTHPS-350
Sprayer TypeEngine Operated HTP Power Sprayer
Engine7HP, 198cc
Pump TypeHTP Pump, 22cc
Hose Pipe50 Feet
FrameMounted on Wheel Base Frame
Guns2 × 60 cm Brass Guns + Straight Handgrips
NozzleSolid Cone Type (Adjustable)
Output per Minute30 to 40 Liters
Rated Pressure8 kg/cm²
Working Pressure6 to 12 Bar
Special FeaturesWomen-Friendly, High Output
