Trispan is a trusted manufacturer of advanced agricultural machinery.Trispan supports farmers with efficient solutions and strong service support. With a growing dealer network, Trispan is committed to transforming agriculture and empowering farmers across India through innovation and reliability.
AT/PO-PATENIGAN, VIA-TARAPUR, DIST-JAGATSINGHPUR, STATE: ODISHA -754133
TRISPAN
THPS-2E

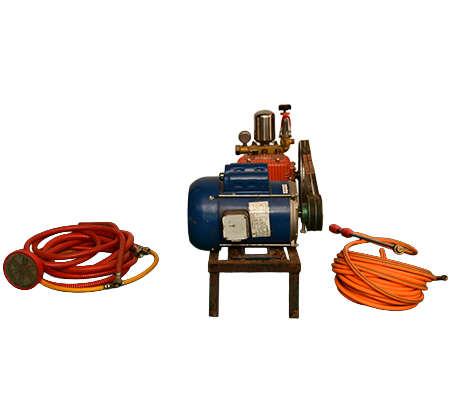

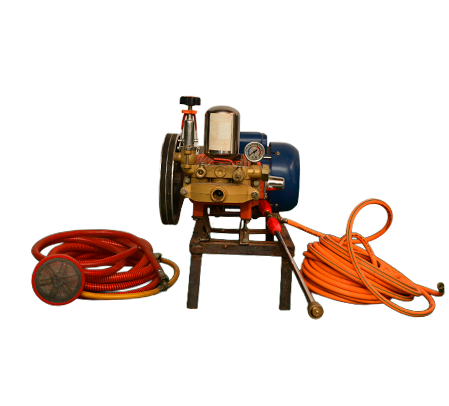

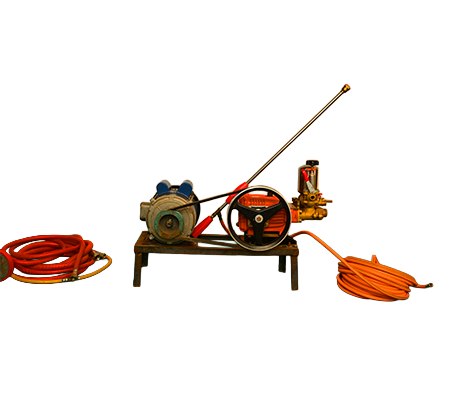

Introducing the TRISPAN THPS-2E Electric Motor HTP Power Sprayer — designed for efficient, eco-friendly, and high-pressure spraying in all types of agricultural operations.
➔ 2HP Single Phase Electric Motor with 1440 RPM speed
➔ Durable double-acting plunger pump for consistent performance
➔ High output of 10–25 liters per minute
➔ 30 Feet Free Hose Pipe included
➔ Electric motor mounted on a sturdy wheelbase frame
➔ Two 60 cm brass guns with adjustable solid cone nozzles
➔ Women-friendly ergonomic design for easier handling
The TRISPAN THPS-2E Electric Motor HTP Power Sprayer is the perfect solution for farmers and growers looking for a powerful yet energy-efficient spraying system. Powered by a 2HP single-phase 220V motor running at 1440 RPM, this sprayer delivers reliable and continuous operation, ideal for farms, gardens, and plantations.
The heavy-duty 22cc double-acting plunger pump ensures steady spray output between 10 to 25 liters per minute, providing excellent coverage for both small and large areas.
Operating at a rated pressure (B grade) and maintaining a strong working pressure of 10 to 20 kg/cm², the THPS-2E is well-suited for high-pressure spraying needs such as pest control, irrigation, and fertilizer application.
It comes equipped with two 60 cm brass guns featuring straight handgrips for easy targeting, adjustable solid cone nozzles, and includes a 30 feet free hose pipe to offer better flexibility in the field.
The entire setup is mounted on a durable wheelbase frame for easy mobility across fields, even in rough conditions. Despite its powerful performance, the machine is designed to be women-friendly, ensuring reduced fatigue and improved operator comfort.
Feature | Details |
|---|---|
| Brand | TRISPAN |
| Model | THPS-2E |
| Sprayer Type | Electric Motor Operated HTP Power Sprayer |
| Motor | 2HP Single Phase, 1440 RPM, 220V |
| Pump Type | HTP Pump, 22cc |
| Hose Pipe | 30 Feet Free Hose Pipe Included |
| Frame | Mounted on Wheel Base Frame |
| Guns | 2 × 60 cm Brass Guns + Straight Handgrips |
| Nozzle | Solid Cone Type (Adjustable) |
| Output per Minute | 10 to 25 Liters |
| Rated Pressure | B Grade |
| Working Pressure | 10 to 20 kg/cm² |
| Special Features | Women-Friendly, Energy Efficient |
