TRISPAN
TPW 1000
Built for Tough Fields – Power, Precision & Performance You Can Trust
➡️ Powerful 7 HP, 212 CC Petrol Engine
➡️ Wide Tilling Range: 850–1050 mm width, 120–360 mm depth
➡️ 32 High-Strength Blades – Heavy-duty tilling with side disks
➡️ 2 Forward + 1 Reverse Gear – Smooth & efficient control
➡️ Fuel-efficient: 0.7–1 Ltr/hour with a 3.5 Ltr fuel tank
➡️ Designed for high performance in wet & dry fields

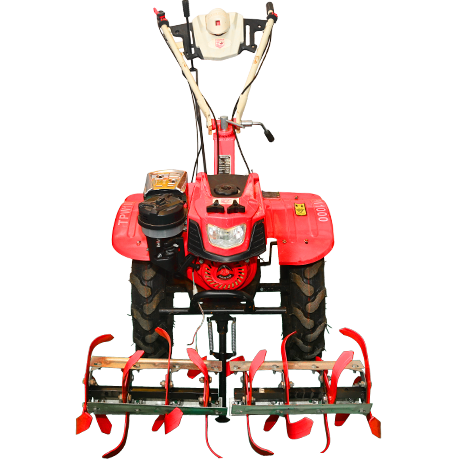

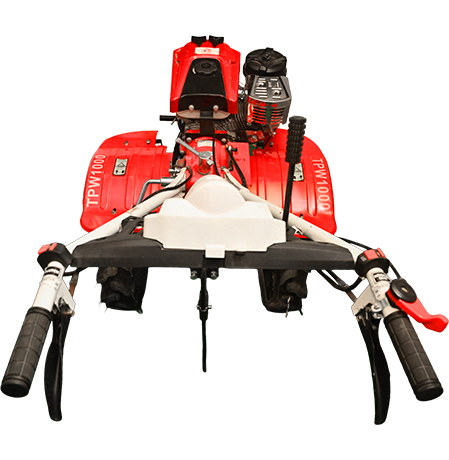

The Trispan TPW 1000 Power Weeder is engineered for farmers who demand power and productivity from their field equipment. Fitted with a 170F vertical petrol engine, this machine delivers a robust 7 HP (212 CC) of raw power, making it ideal for both dryland and wetland farming operations. With a gear-type transmission, recoil start, and tilling depth up to 360 mm, it ensures deep soil penetration for optimal crop root development. The 32-blade tine set (2+1+1 groups with side disks) and adjustable tilling width (850–1050 mm) make it suitable for all types of row-crop fields. Despite its strength, it maintains fuel efficiency, consuming only 0.7 to 1 liter per hour, and remains easy to handle with standard 4.0-8 tires and a solid build of 90 kg. A must-have for any serious farmer looking to boost productivity with less effort.
Feature |
Details |
|---|---|
| Model | TPW 1000 |
| Engine Type | 170F Petrol, 4-Stroke, Single Cylinder, Air-Cooled |
| Power Output | 7 HP / 212 CC |
| Fuel Tank Capacity | 3.5 Liters |
| Transmission | Gear Type |
| Starting System | Recoil Start |
| Tilling Width | 850–1050 mm |
| Tilling Depth | 120–360 mm |
| Gear Shifting | 2 Forward, 1 Reverse |
| Standard Tire Size | 4.0–8 |
| Tine Set | 32 Blades (2+1+1 Group with Side Disk) |
| Fuel Consumption | 0.7 – 1 Liter/hour |
| Machine Weight | 90 Kg |
