TRISPAN
TPW 1000D

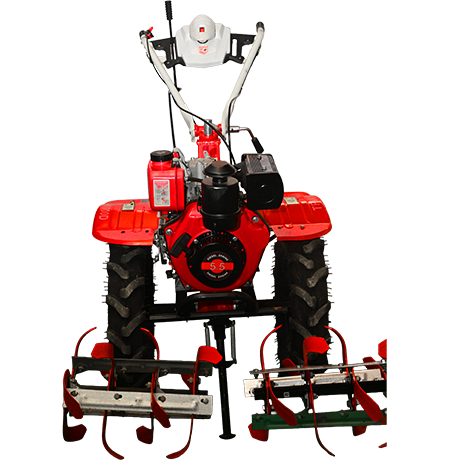

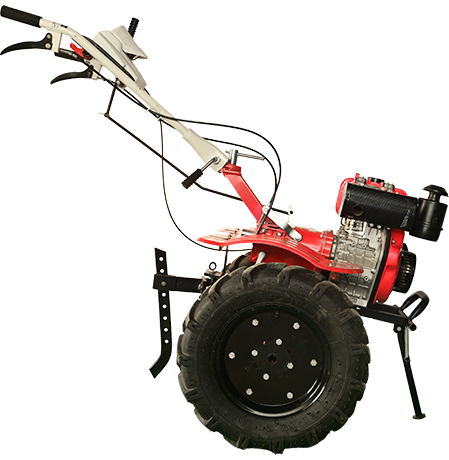

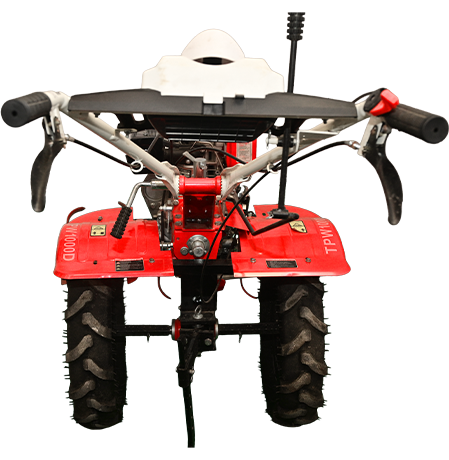

The TRISPAN TPW 1000D Power Weeder is a compact yet powerful solution for efficient land cultivation.
➔ 173F Diesel Engine – 4.8 HP, 251cc
➔ Recoil Start with Gear Transmission
➔ 32 Blades with Side Discs for Deep Tilling
➔ Tilling Width: 850–1050 mm | Depth: 120–360 mm
➔ Low Fuel Usage: 0.7–1.0 Ltr/Hour
➔ Women-Friendly & Easy to Operate
The TRISPAN TPW 1000D is a versatile and durable diesel power weeder, equipped with a 173F Kama diesel engine delivering 4.8 HP of power and 251cc displacement. Designed for small and medium-scale farmers, this machine is ideal for both primary and secondary tillage operations across different types of soil.
Its gear-type transmission system ensures efficient power delivery to the ground, while the recoil starting system provides easy startup in field conditions. The machine offers a tilling width of 850–1050 mm and a depth range of 120–360 mm, providing excellent soil penetration and weed removal capacity.
With 32 high-quality blades in a 2+1+1 configuration and side discs, it guarantees uniform and clean soil preparation. The dual forward and single reverse gear setup allows for flexible and controlled operation. The fuel-efficient design, consuming just 0.7–1.0 liters per hour, ensures low running costs.
Weighing only 98 kg, this model is easy to handle, women-friendly, and ideal for intercropping and vegetable farming.
Feature |
Details |
|---|---|
| Brand | TRISPAN |
| Model | TPW 1000D |
| Engine Type | 173F Diesel Kama Engine, Vertical, Single Cylinder, 4-Stroke, Air-Cooled |
| Power Output | 4.8 HP |
| Engine Capacity | 251 cc |
| Fuel Tank Capacity | 3.5 Liters |
| Transmission | Gear Type |
| Starting System | Recoil Start |
| Tilling Width | 850 – 1050 mm |
| Tilling Depth | 120 – 360 mm |
| Gear Shifting | 2 Forward + 1 Reverse |
| Tire Size | 4.0 – 8 |
| Blade Set | 32 Blades (2+1+1 Group) with Side Disk |
| Fuel Consumption | 0.7 – 1.0 Ltr/Hour |
| Weight | 98 Kg |
| Women Friendly | Yes |
