TRISPAN
4LZ-5.0Z
Looking for a high-performance harvester that works in all field conditions—dry or muddy—and qualifies for government subsidy?
The Trispan 4LZ-5.0Z is engineered to deliver power, precision, and profitability for serious farmers. Whether it's paddy, wheat, or corn, this machine gets the job done faster, cleaner, and smarter.
✅ Government Approved Model – Eligible for Subsidy
✅ 98 HP Xinchai Engine – Powerful & Reliable for all Crops
✅ Track Type Harvester – Superior Performance in Wet & Soft Fields
✅ Hydraulic Header Lift – Easy to Cross Ridges (30mm–910mm Height)

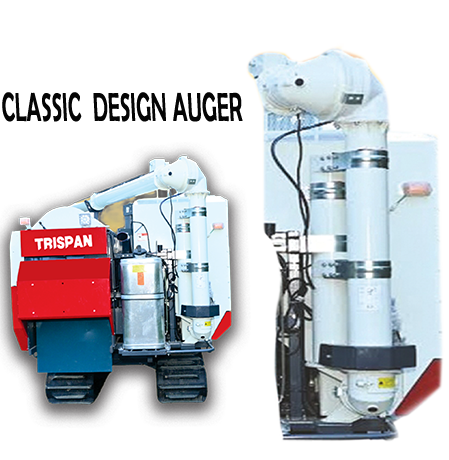

✅ 360° Rotating Unloading Pipe – Smooth Grain Transfer
✅ Large 1400L Grain Tank Capacity – Reduces Downtime
✅ Advanced Axial Flow Threshing – Low Grain Loss, High Efficiency
✅ User-Friendly Dashboard – Ergonomic Controls & Electric System
✅ Stainless Steel Components – Rust-Free & Longer Life
✅ Works on Rice, Wheat, Corn, Beans & More

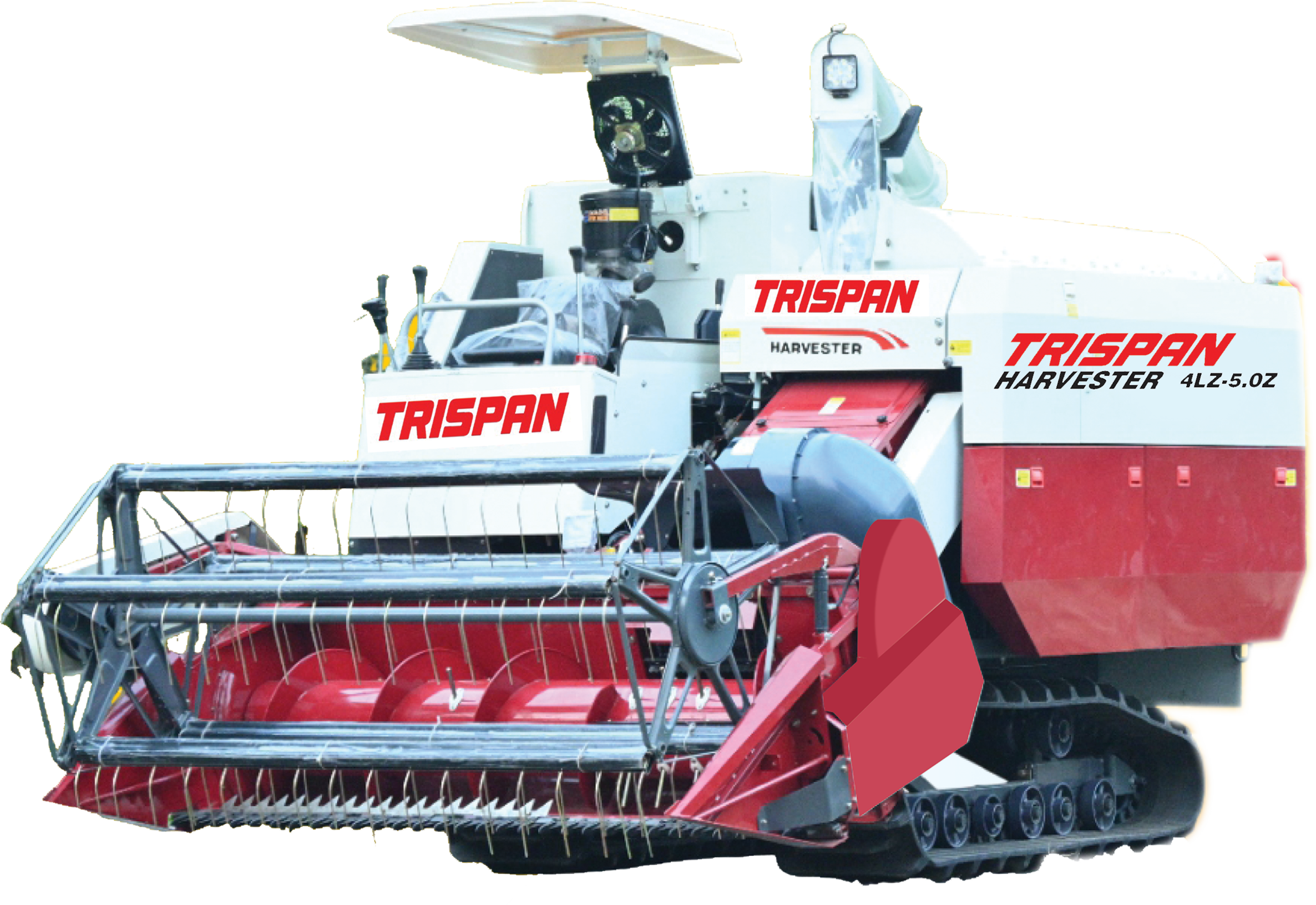

The Trispan 4LZ-5.0Z Self Propelled Combine Harvester is a top-tier, government-approved, and subsidy-eligible machine designed specifically to meet the rigorous needs of Indian farming. Engineered with a robust 98 HP Xinchai 4D35ZT diesel engine, this combine ensures consistent and powerful performance across all terrains—especially wet and soft fields—thanks to its rubber crawler tracks and superior 325mm ground clearance.

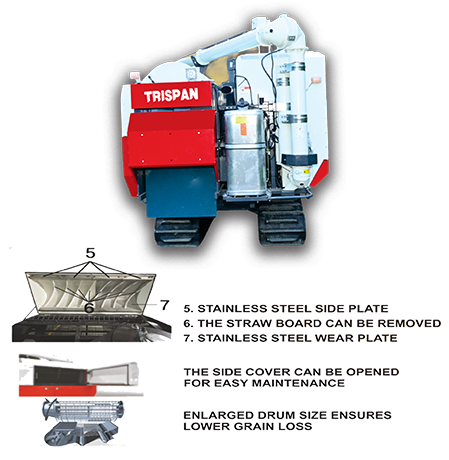

Built for maximum productivity and durability, it features an axial flow threshing system with beat bar, a stainless steel exhaust tail, and removable straw board for easy maintenance. Its large 1400L grain tank, 360° unloading system, and automatic control dashboard allow smooth operation, minimizing operator fatigue and maximizing field coverage per day.
Whether you're harvesting rice in muddy paddy fields or wheat in drier regions, the 4LZ-5.0Z is perfectly adapted to Indian agricultural challenges. With government testing and subsidy availability, it's not just a harvester—it's a smart investment for progressive farmers.
Feature |
Details |
|---|---|
| Model | 4LZ-5.0Z |
| Structure | Self-Propelled Full Feed Track Harvester |
| Engine | Xinchai 4D35ZT – Inline, Water-Cooled, 4-Stroke, Direct Injection |
| Engine Power | 73.5 kW / 98 HP |
| Engine RPM | 2600 r/min |
| Fuel Tank Capacity | 130 L |
| Weight | 3550 kg |
| Overall Dimensions (mm) | L: 4959 × W: 2650 × H: 2700 |
| Cutting Width | 2200 mm |

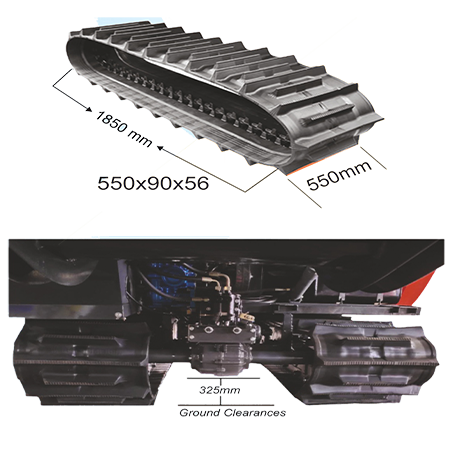

| Track Size | 550 × 90 × 56 mm |
| Track Gauge | 1150 mm |
| Min Ground Clearance | 325 mm |
| Gearbox | 85-Speed Hydraulic Gearbox |
| Cabin Type | Roof Type (Sun-Roof) |
| Threshing Type | Axial Flow with Beat Bar |
| Feeding Capacity | 5 kg/s |
| Grain Tank Volume | 1.4–1.5 m³ (Approx. 1400 L) |
| Grain Unloading | 360° Rotary Unloading Pipe |
| Header Lift | Hydraulic (Lifting Height: 30–910 mm) |
| Cleaning System | Vibration Sieve + Centrifugal Fan |
| Operation System | HST, 45cc |
| Working Efficiency | 1 to 1.5 Acre per Hour |
| Suitable Crops | Rice, Wheat, Corn, Beans |
